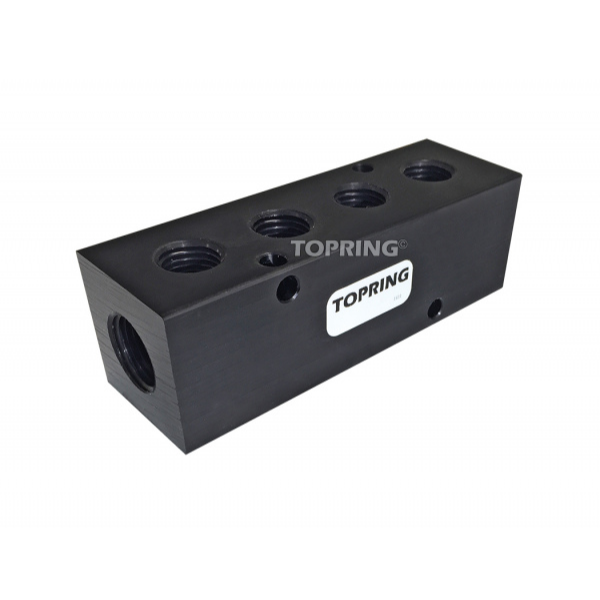

47.422 4-1 bar manifold 3/8 in 1/4 out

Original price $78.98 - Original price $78.98
Original price
$78.98
$78.98 - $78.98
Current price $78.98

Technical specifications and certifications
• Maximum Working Pressure: 1000 PSI
• Working Temperature: -23 to 93 °C
• Fluids: Air and liquids/gases compatible with aluminium
• Inlet/Outlet 1: 3/8 (F) NPT
• Outlet 2: 1/4 (F) NPT
• Number of distribution outlets: 4
• Dimensions:
A: 1.25 in
B: 3.88 in
C: 1.75 in
D: 0.89 in
E: 0.88 in

Material(s):
• Black anodized aluminium for resistance to corrosion

Features and benefits
• Provides a convenient junction point for compressed air distribution systems requiring multiple connections
• Each bar manifold accepts three to six quick couplers or air hoses

Operation and installation
INSTALLATION TIP
To ensure safe installation of the bar manifolds, it is recommended to use the proper type of screws suitable for the surface on wich the manifold will be installed
Installation requires screws #8
Each bar is equipped with 2 mounting holes on each side allowing multiple installation options

Applications
• Air outlets, compressed air distribution systems, control panels
